Overview

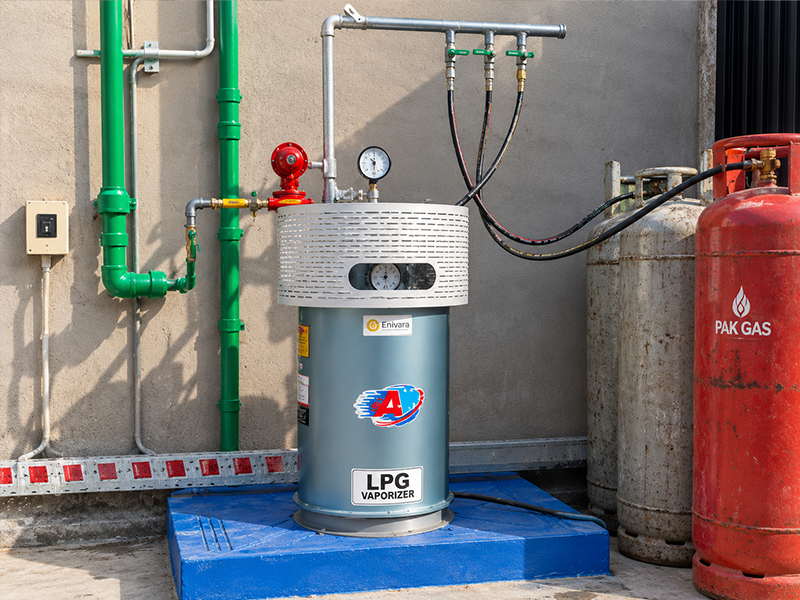

IE-SP-50 is an electric water bath LPG vaporizer designed to ASME standards with third-party OGRA approval and ATEX certification. Ideal for factories, industries, hotels, and large kitchens requiring continuous, reliable LPG vaporization.
Design StandardASME SEC VII DIV 1 (2019)
Third Party ApprovalTUV Rheinland / OGRA
ATEX CertifiedII 1G Ex d IIA T3 Ga
Heating SourceElectric Heater 380V, 6 kW, 3Ø
Why install a vaporizer?
- Prevents gas freeze, maintains stable flow under low temperatures.
- Allows near-complete cylinder draw-down, reducing waste.
- Automatic temperature control & safety interlocks.
- Local assembly in Pakistan; easy spares & support.
Technical Specifications
| Model | IE-SP-50 |
|---|
| Design Type | Electric Water Bath |
|---|
| Approved By | ASME Inspector (TUV Rheinland), OGRA |
|---|
| ATEX | II 1G Ex d IIA T3 Ga |
|---|
| Design Temp | 55–99°C |
|---|
| Operating Temp | 70 ±5°C |
|---|
| Heating | Electric Heater 380V, 6kW, 3Ø |
|---|
| Design Pressure | 250 Psig |
|---|
| Operating Pressure | 60–150 Psig |
|---|
| Hydro Test | 325 Psig |
|---|
| Pneumatic Test | 120 Psig |
|---|
| Safety | PRV, water level sensor, overflow, temp sensors |
|---|

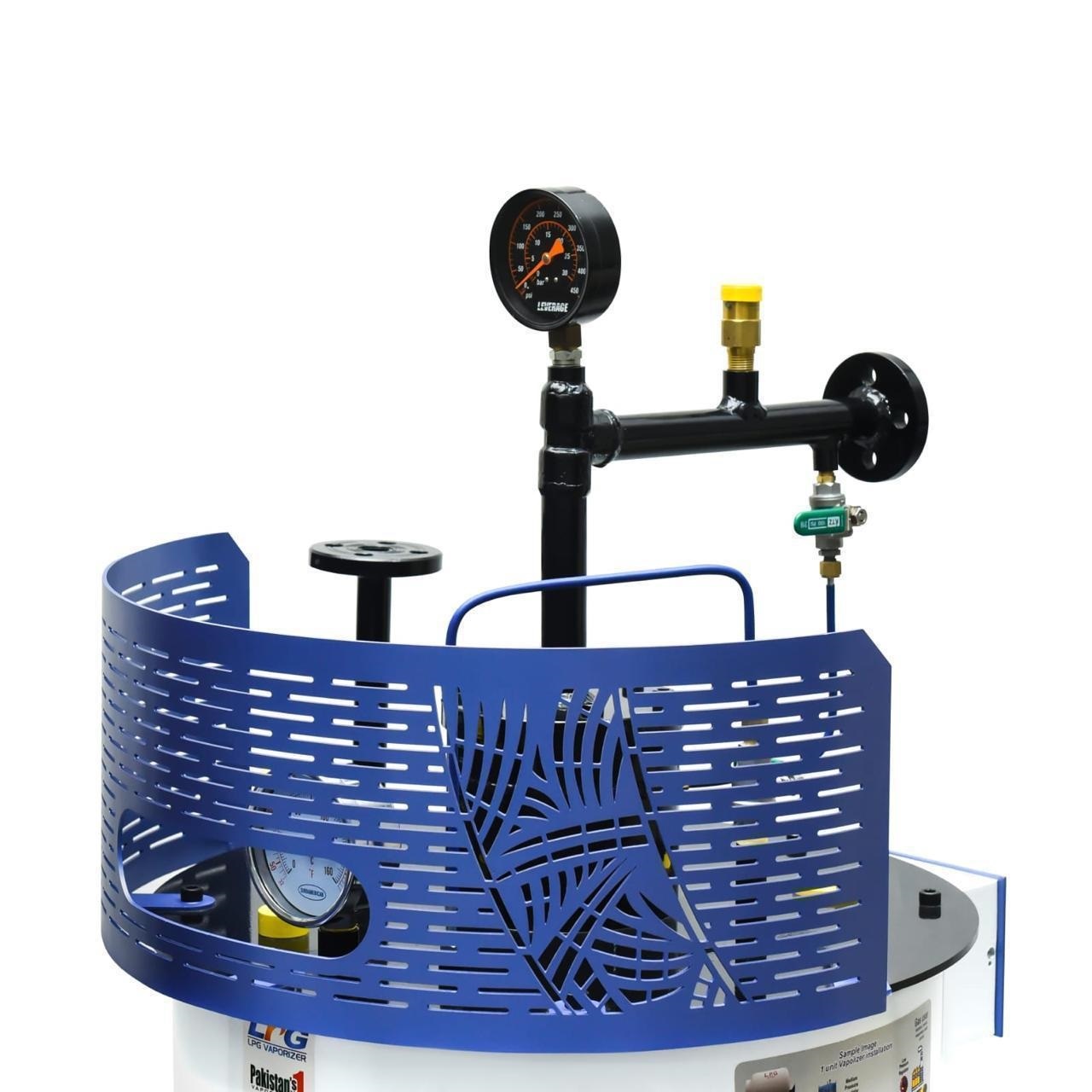

| Control | Explosion-proof electric panel |
|---|
| Accessories | Liquid carry off, water level indication, cables |
|---|
| Warranty | 1 Year |
|---|
Datasheet & certified drawings available on request.
Available Capacities (10–100kg)
- 10 kg — Small kitchens, cafes

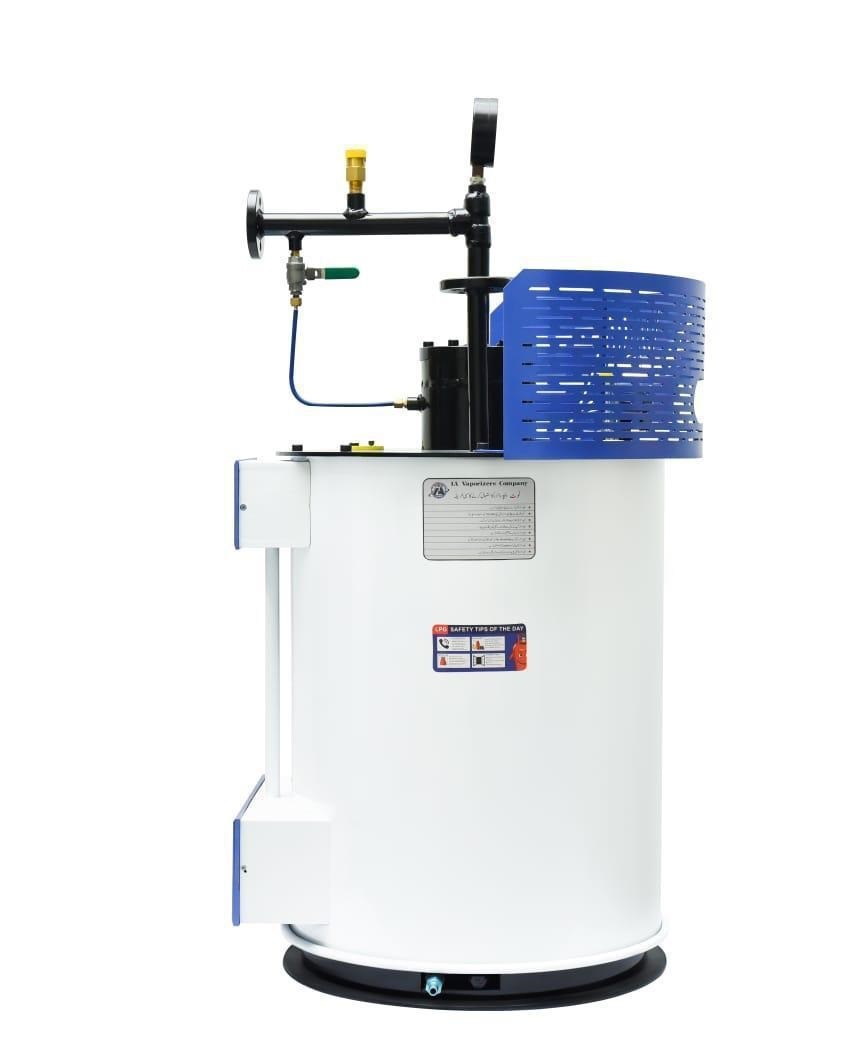

- 20 kg — Medium commercial kitchens

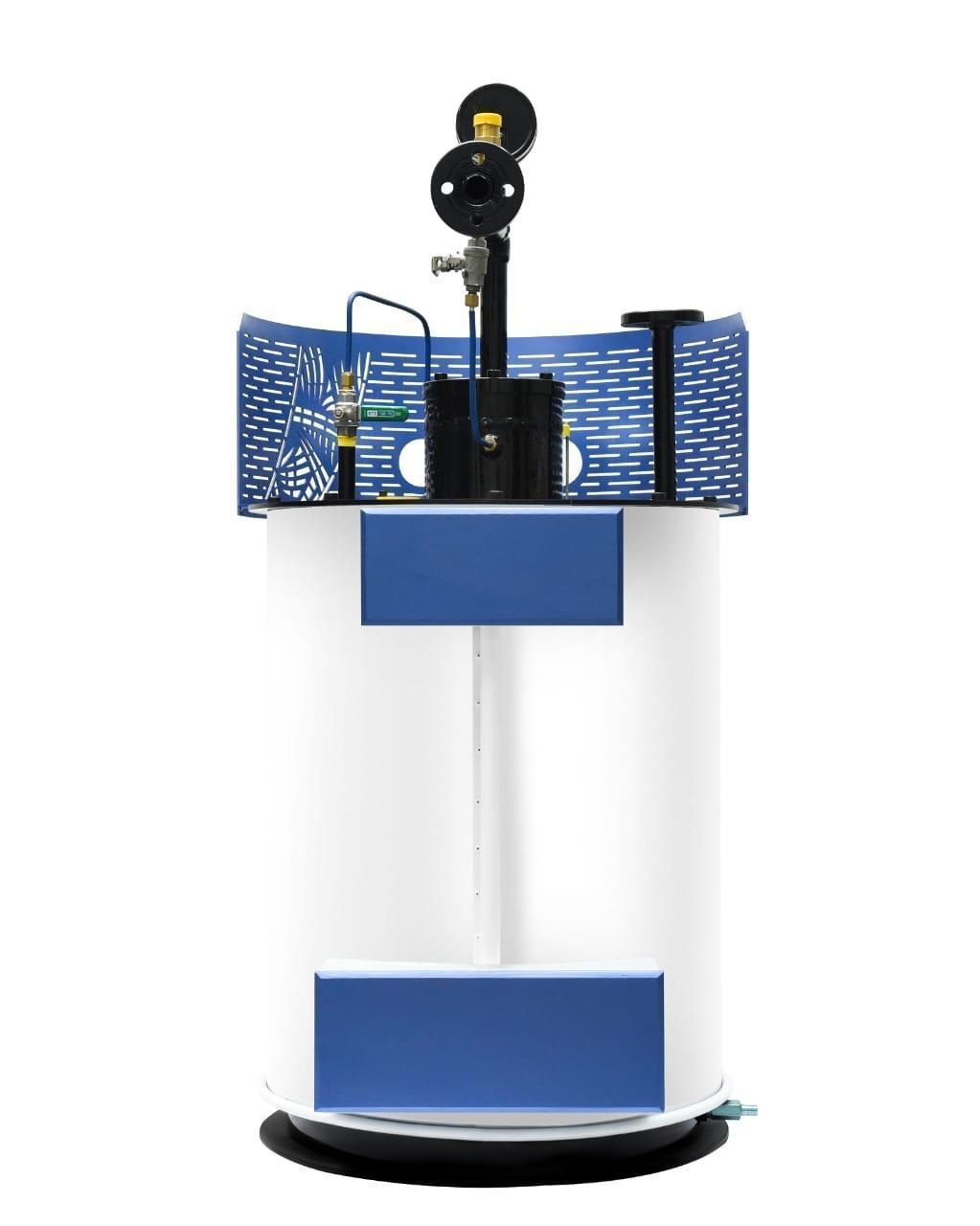

- 25 / 30 kg — Hotels, larger kitchens
- 50 / 70 / 100 kg — Factories, continuous industries
Industries We Serve
Food & Beverage, Textile, Hotels & Restaurants, Chemical & Pharma, Steel, Packaging, Poultry & Dairy, etc.
FAQs
Installation & commissioning?
Yes — Pakistan-wide by trained engineers.
ASME approved?
Inspected by ASME & OGRA approved third party.
Spare parts?
Local heating elements, sensors, PRV units, panels available.
