LPG Storage Tank as per OGRA Standard

\nLPGShop.pk designs and manufactures OGRA standard LPG storage tanks for safe bulk storage at plants, hotels, factories, bottling and distribution facilities. Tanks are engineered to ASME Sec VIII Div 1 and compliant with NFPA 58, using SA-516 Gr.70 material, certified welding procedures, and complete testing.
\n

? Key Highlights

\n

\n
• OGRA Standard & NFPA 58 Compliant

\n
• Design Code: ASME Sec VIII Div 1

\n
• Design Pressure: up to 250 psig | Hydro Test: up to 1.3× MAWP

\n
• Design Temperature: ?20°C to +55°C (or as required)

\n
• Material: SA-516 Gr.70 (Shell & Dished Ends)

\n
• Radiography/NDT: 100% on critical seams (as per WPS/PQR)

\n
• Capacities: 5 m³ to 100 m³ (custom sizes available)

\n
• Orientations: Horizontal / Vertical | Aboveground / Underground

\n

\n

? Standard Scope of Supply

\n

\n
• Shell & Dished Ends SA-516 Gr.70, corrosion allowance as specified

\n
• Nozzles & Flanges (A105/A106); Reinforcement pads per code

\n
• Manhole 18” with spiral wound gasket (SS304/Graphite)

\n
• Pressure Relief Valves (PRV) sized per NFPA 58

\n
• Level (Roto) Gauge, Pressure Gauge, Temperature Gauge

\n
• Liquid inlet/outlet, vapor return, drain & sampling points

\n
• Internal valves & excess flow protection where required

\n
• Primer + industrial enamel top coats; safety labels & nameplate

\n

\n

? Testing & Inspection

\n

\n
• Hydrostatic test: up to 1.3× design pressure

\n
• Radiography/UT/MPI as per ITP & code requirements

\n
• Dimensional checks, nozzle orientation, fitting leak tests

\n
• Documentation: WPS/PQR/Welder qualifications, MTCs, test reports

\n

\n

?? Options & Add-ons

\n

\n
• Cathodic protection & holiday testing (UG tanks)

\n
• Skid base, supports, saddles & hold-downs

\n
• Insulation & cladding, painting systems per environment

\n
• Level transmitters, ESD, and instrument panels

\n
• On-site erection, commissioning & OGRA file assistance

\n

\n

? Typical Technical Data (example)

\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n

Parameter	Value
Working Fluid	LPG (SG ? 0.55)
Filling Ratio	85% (per NFPA 58)
Design Code	ASME Sec VIII Div 1
Design Pressure	up to 250 psig
Hydro Test	up to 1.3× MAWP
Material	SA-516 Gr.70 (Shell & Heads)
Nozzle Materials	Flanges A105 | Pipes A106
Manhole	18” with spiral wound gasket
Relief Capacity	Sized per NFPA 58
Finish	Primer + Enamel top coat

\n

? Safety & Compliance

\n

\n
• Relief valve sizing & set pressures per NFPA 58

\n
• Earthing, crash protection, and signage provisions

\n
• Foundation/anchoring guidelines for seismic/wind loads

\n

\n

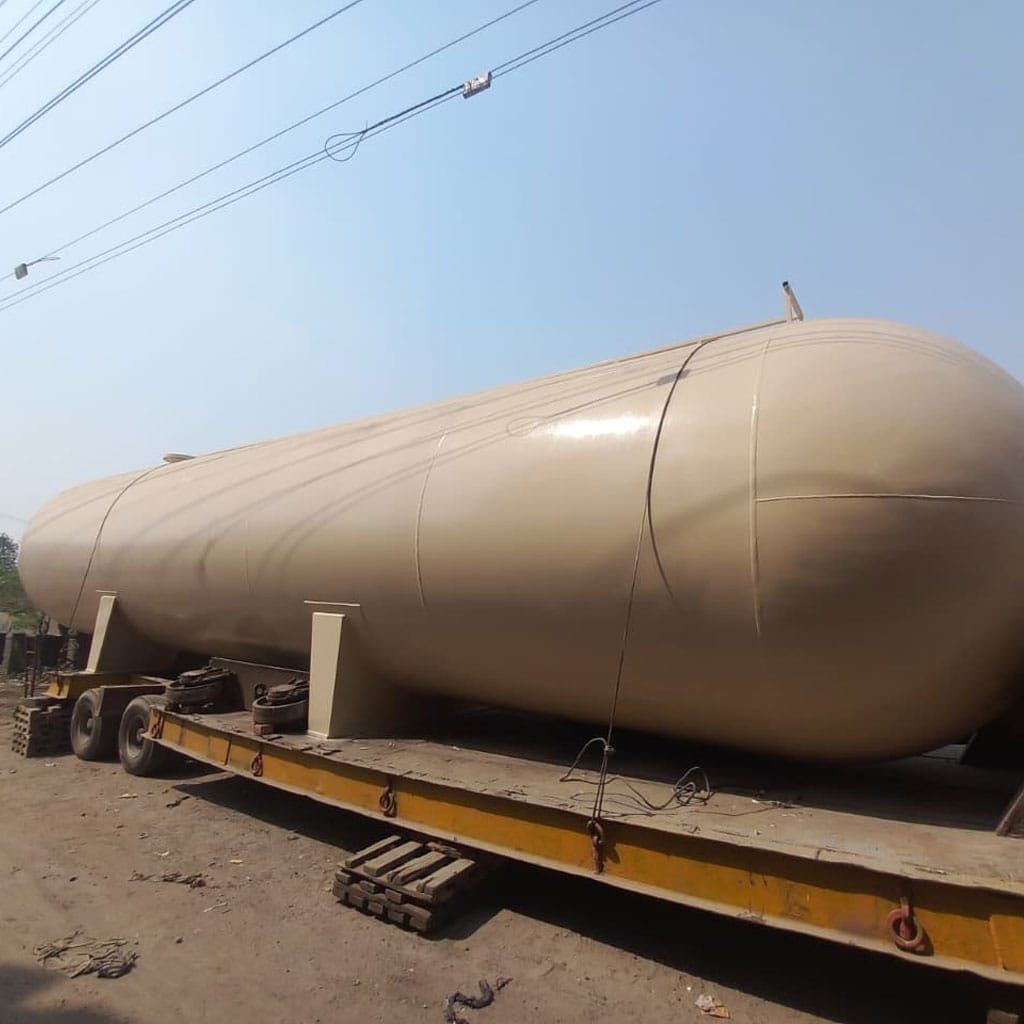

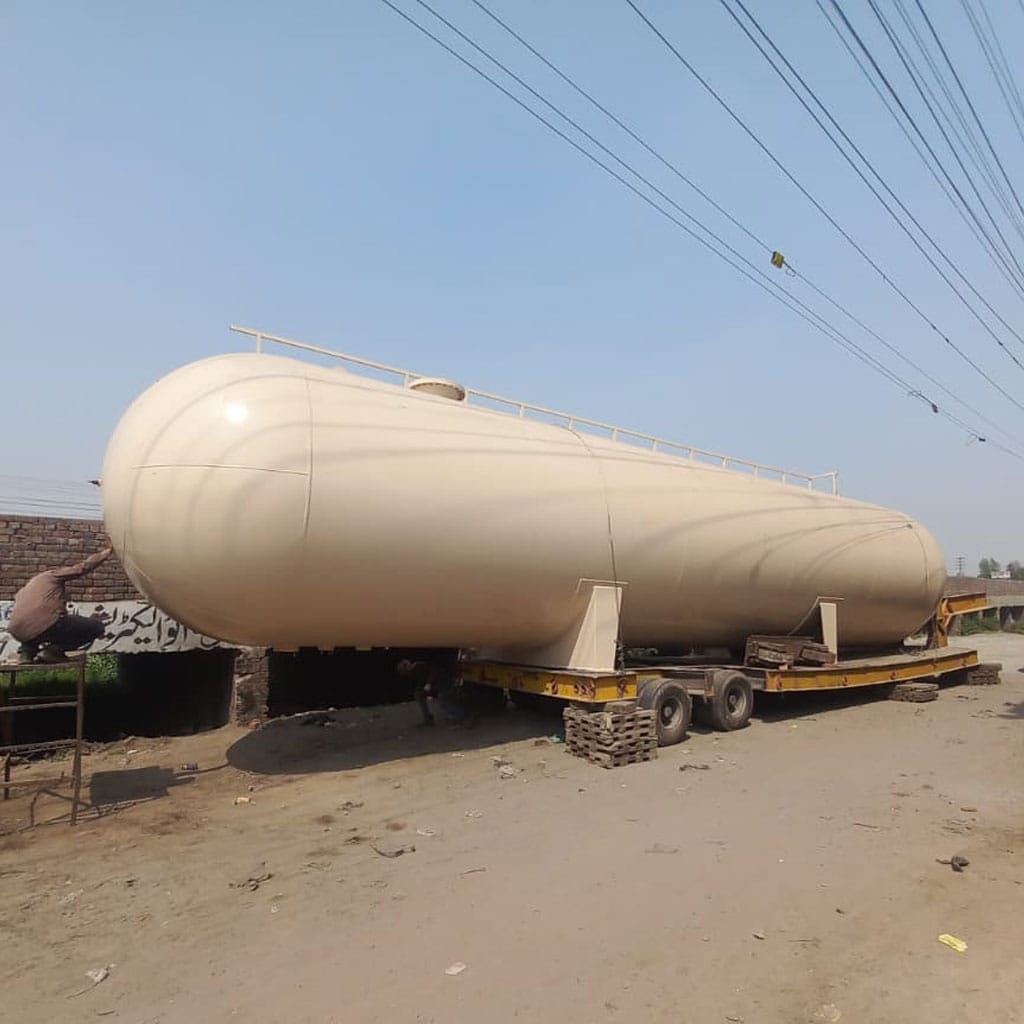

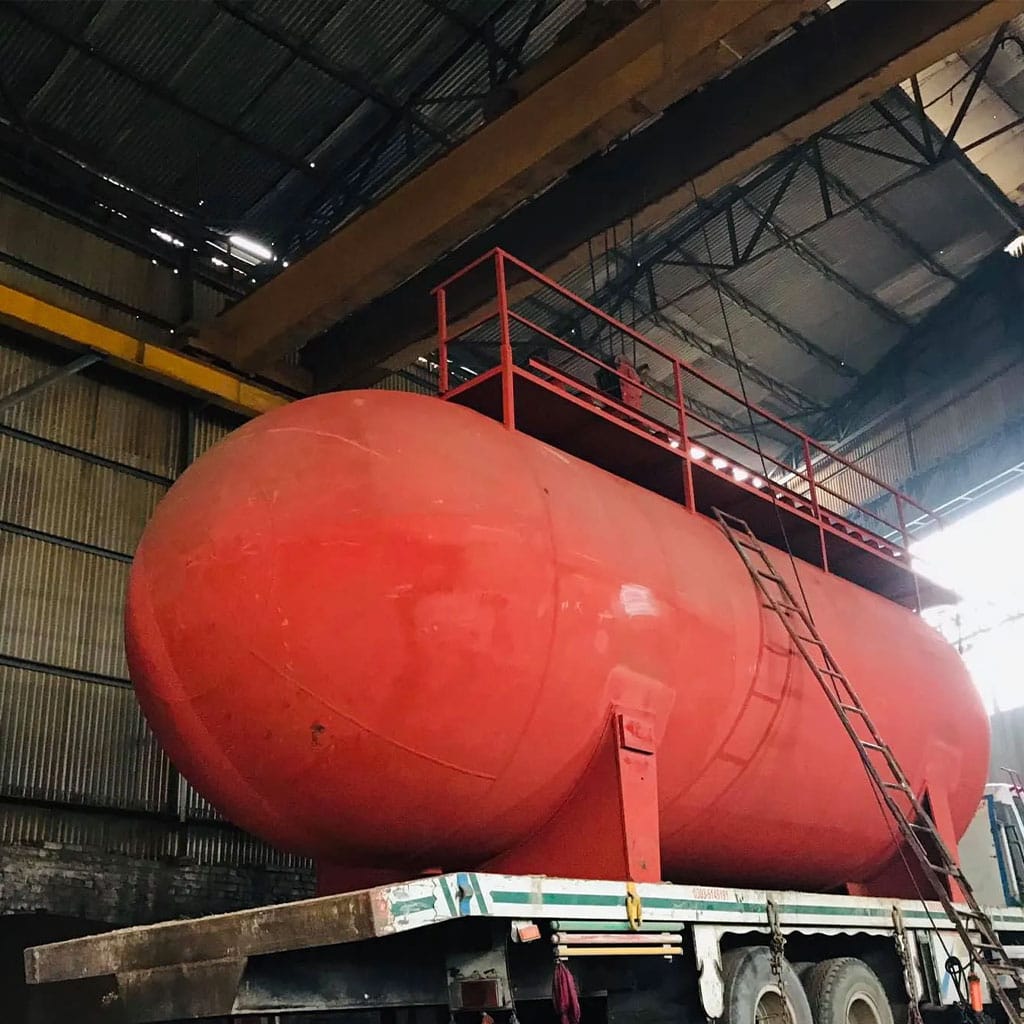

? Project Gallery & Video

\nScroll images to view shell rolling, head forming, welding, NDT, hydro test and final coating. Watch the factory walkthrough video embedded below.
\n

? Get a Quotation

\nShare required capacity, orientation (horizontal/vertical), installation (AG/UG), and design pressure/temperature. Our team will propose the bill of material, drawings and delivery timeline.
\n
\nEmail: info@lpgshop.pk
\nWhatsApp / Phone: 03214022047
