10KG LPG Vaporizer for Restaurants

10KG LPG Vaporizer for Restaurants in Pakistan

Running a restaurant, dhaba, tea stall, or small commercial kitchen in Pakistan? If your gas flame becomes weak during busy cooking hours or your LPG cylinders struggle to supply enough gas, an LPG vaporizer can help maintain a more consistent gas supply.

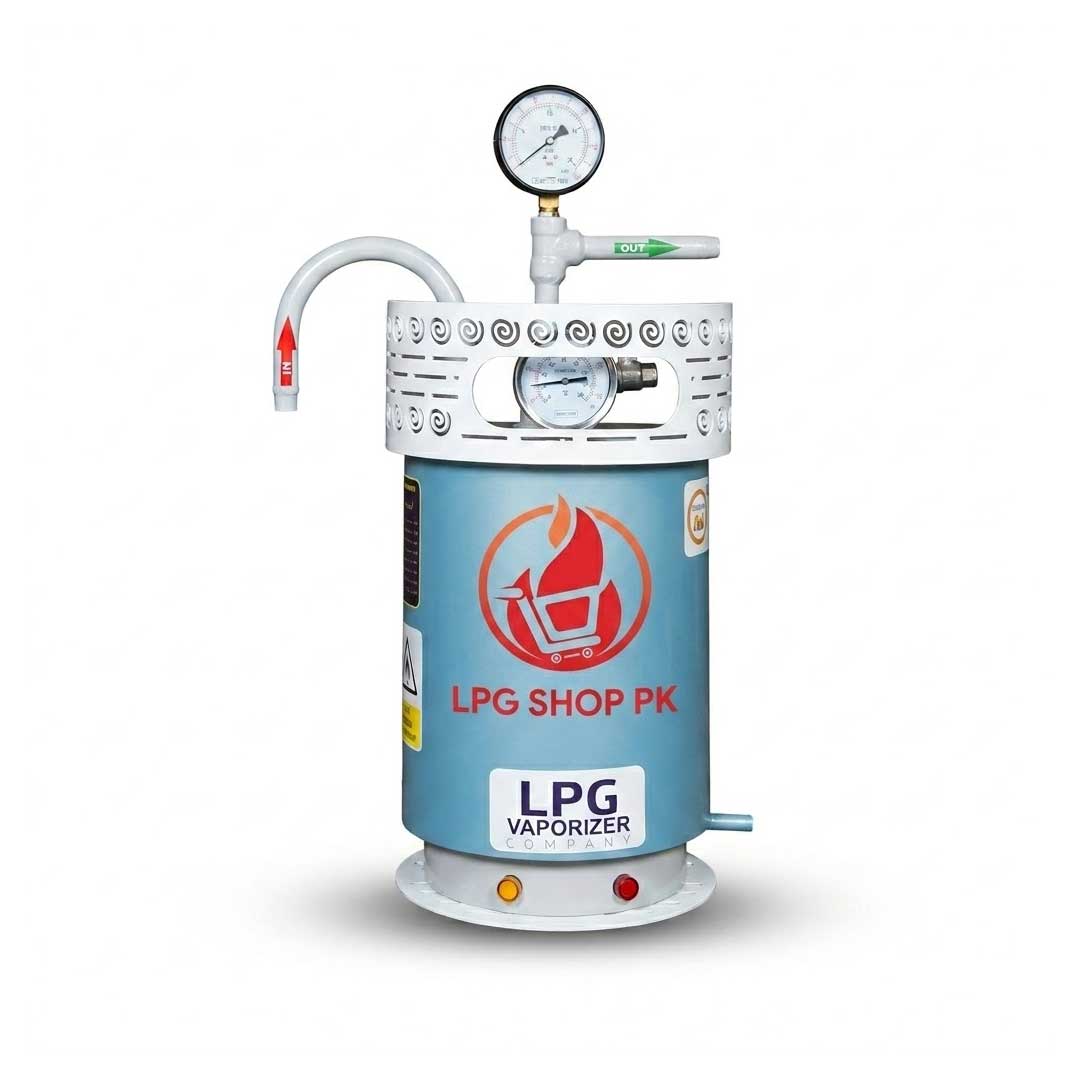

The 10KG/H LPG Vaporizer is an electric water bath vaporizer designed to convert liquid LPG into gas at a rated capacity of up to 10 kilograms per hour under suitable operating conditions. It can be integrated with a properly designed LPG cylinder manifold system to support restaurants and other small commercial kitchens.

What Problem Does This Vaporizer Solve?

A standard LPG cylinder relies on natural vaporization to convert liquid LPG into gas. During periods of high demand or in cold weather, natural vaporization may not provide enough gas to meet your kitchen's requirements. This can lead to low gas pressure, weak flames, and interruptions in cooking.

A 10KG/H LPG Vaporizer uses electric heating to support the vaporization process and provide a more consistent gas supply, provided the connected system is correctly sized and installed.

How It Connects to Your 45KG LPG Cylinders

The vaporizer can be integrated into a suitable LPG supply system using a single-cylinder or multi-cylinder manifold arrangement, depending on your gas consumption and installation requirements.

Single-Cylinder Setup

A single 45KG LPG cylinder can be connected through a suitable manifold and associated safety equipment. This arrangement may suit small kitchens with relatively low gas demand, provided the cylinder supply system can meet the required flow rate.

Dual-Cylinder Setup

Two 45KG LPG cylinders can be connected through a properly designed dual-cylinder manifold. An appropriate changeover arrangement can allow the supply to switch from one cylinder to another when the first cylinder becomes empty.

Both arrangements can be considered for small commercial kitchens where a bulk LPG storage tank may not be necessary. The final configuration should be selected according to the actual gas demand, cylinder vaporization requirements, and applicable safety regulations.

Technical Specifications

• Vaporization Capacity: 10 KG/H

• Vaporizer Type: Electric Water Bath Vaporizer

• Compatible LPG Supply: Suitable 45KG LPG cylinder system, subject to system design

• Manifold Options: Single-cylinder or dual-cylinder arrangement, subject to installation requirements

• Power Supply: 220V / 50Hz, subject to the machine's nameplate specifications

• Working Pressure: 0.5–10 bar, subject to the manufacturer's confirmed specifications

• Temperature Control: Automatic thermostat, if included in the supplied model

• Safety Features: Confirmed safety equipment may include pressure relief, overheat protection, and automatic shutdown

• Fuel Compatibility: LPG, subject to the manufacturer's specifications

• Recommended Applications: Small restaurants, dhabas, tea stalls, bakeries, cafés, and commercial kitchens

• Warranty: 10 years, subject to the manufacturer's written warranty terms

Who Can Use a 10KG/H LPG Vaporizer?

• Small Restaurants and Dhabas: Support a more consistent gas supply during busy cooking hours.

• Tea Stalls and Cafés: Suitable for regular boiling, brewing, and heating applications.

• Small Bakeries: Support gas supply for ovens and other compatible equipment.

• Cloud Kitchens: An option for kitchens that need a properly designed LPG supply system without a bulk storage tank.

• BBQ and Grill Setups: Suitable for compatible equipment when the gas demand falls within the system's capacity.

• Small Food Businesses: An option for upgrading an existing cylinder-based LPG installation.

The right vaporizer capacity depends on the combined gas consumption of your burners, ovens, and other connected appliances.

5 Reasons to Consider a 10KG/H LPG Vaporizer

1. More Consistent Gas Supply

Helps maintain the required gas supply when natural vaporization alone cannot meet demand, provided the complete system is correctly sized.

2. Compatible with Cylinder-Based Systems

Can be integrated into a suitable 45KG LPG cylinder installation, subject to the cylinder supply system's capacity.

3. Flexible Manifold Arrangements

Single-cylinder or dual-cylinder configurations can be considered according to consumption and operating requirements.

4. Better Support for High-Demand Applications

Forced vaporization can help address inadequate natural vaporization. Actual LPG utilization depends on the system design, operating conditions, and remaining liquid in the cylinders.

5. A Practical Commercial LPG Solution

May be suitable for businesses that require additional vaporization capacity without investing in a bulk LPG storage system.

10KG/H LPG Vaporizer Price in Pakistan

Looking for a 10KG/H LPG Vaporizer price in Pakistan? The total cost depends on the supplied model, included safety equipment, manifold arrangement, installation requirements, and warranty coverage.

Contact LPGShop.pk for the latest price, product details, and installation options. Our team can help assess your kitchen's gas consumption and recommend a suitable LPG vaporizer capacity.

For commercial installations, confirm the machine specifications, safety requirements, and warranty terms before placing your order.

Delivery Across Pakistan

LPGShop.pk provides product enquiries and delivery support for customers in Lahore, Karachi, Islamabad, Faisalabad, Rawalpindi, Multan, Peshawar, Quetta, Sialkot, Gujranwala, and other cities across Pakistan.

Installation assistance may be available depending on the location and project requirements. Delivery timelines should be confirmed when ordering.

Frequently Asked Questions

Q: What is a 10KG/H LPG Vaporizer?

A: It is an electric water bath vaporizer designed to convert liquid LPG into gas at a rated capacity of up to 10 kilograms per hour under specified operating conditions.

Q: Can a 10KG/H LPG Vaporizer work with a 45KG LPG cylinder?

A: It may be integrated with a suitable 45KG cylinder supply system. However, a single cylinder may not provide sufficient natural vaporization for continuous operation at the vaporizer's full rated capacity. The complete system must be designed and assessed by a qualified LPG professional.

Q: What is the difference between a single manifold and a dual manifold?

A: A single-cylinder arrangement uses one cylinder, while a dual-cylinder arrangement connects two cylinders through a suitable manifold. Automatic changeover requires an appropriate changeover device and correctly designed installation.

Q: Why does my restaurant's gas flame become weak during cooking?

A: Weak flames can result from inadequate natural vaporization, insufficient gas supply, an undersized regulator or pipework, or other system issues. An LPG vaporizer may help when insufficient vaporization is the cause. A qualified technician should assess the installation before selecting equipment.

Q: Is a 10KG/H vaporizer suitable for a small restaurant or dhaba?

A: It may be suitable, depending on the combined gas consumption of the connected appliances. The required capacity should be calculated before selecting a vaporizer.

Q: What is the price of a 10KG/H LPG Vaporizer in Pakistan?

A: The price depends on the model, specifications, accessories, installation requirements, and warranty. Contact LPGShop.pk for a current quotation.

Q: Does an LPG vaporizer require professional installation?

A: Yes. LPG vaporizers should be installed and commissioned by qualified professionals in accordance with the manufacturer's instructions and applicable safety requirements. The installation should include suitable pressure regulation, safety devices, electrical protection, and ventilation.

Need help selecting the right LPG vaporizer?

Contact LPGShop.pk for product information, technical guidance, and a quotation for your commercial kitchen or restaurant.
