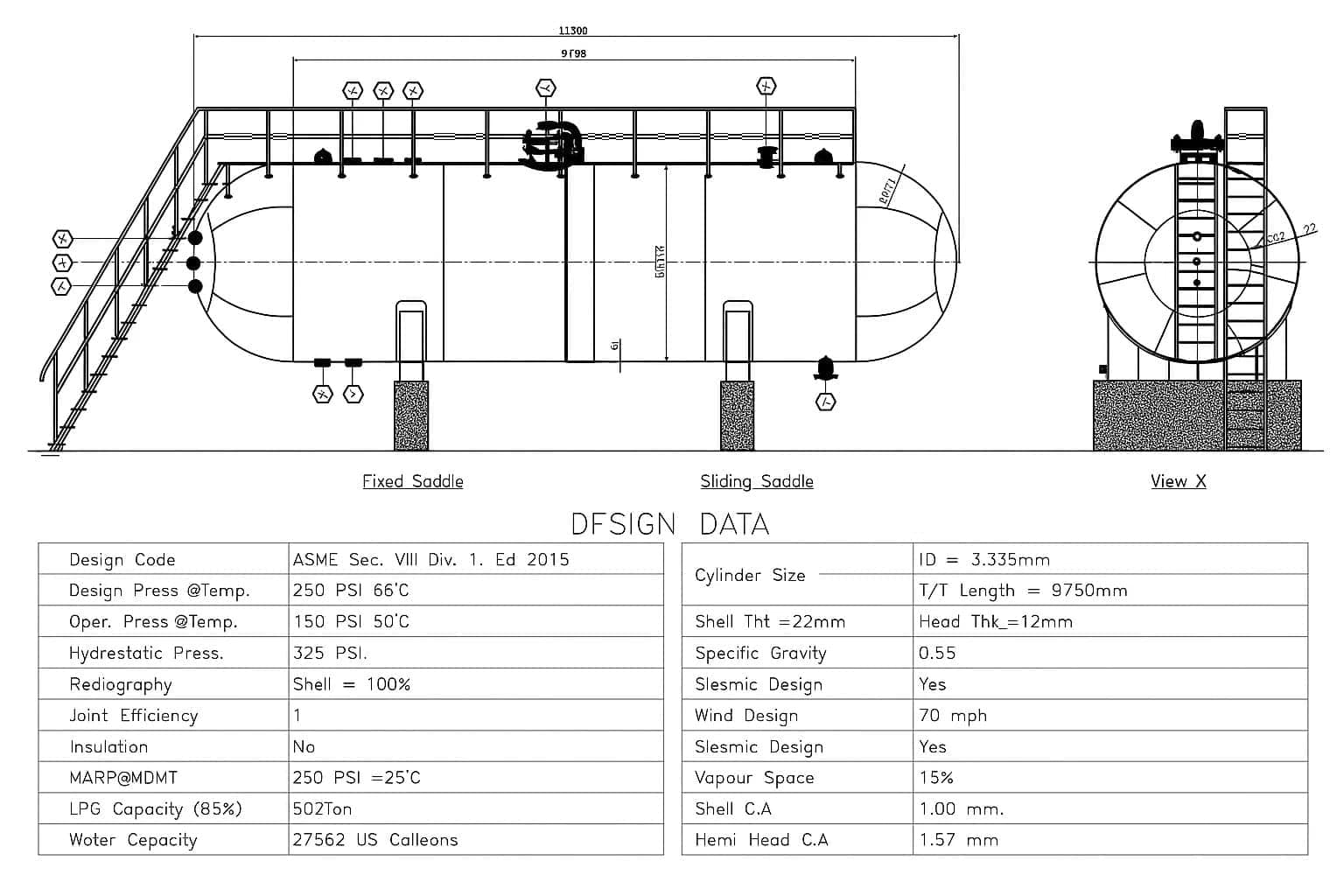

LPG STORAGE TANKS

When your business requires pressure vessels, you can’t afford to take chances. You need to be absolutely certain that the vessel has been engineered, designed, and fabricated properly. That’s why you can trust our expertise to deliver what you need. We provide high-quality pressure vessels that are reliable and meet international safety standards.

Types of Storage Tanks

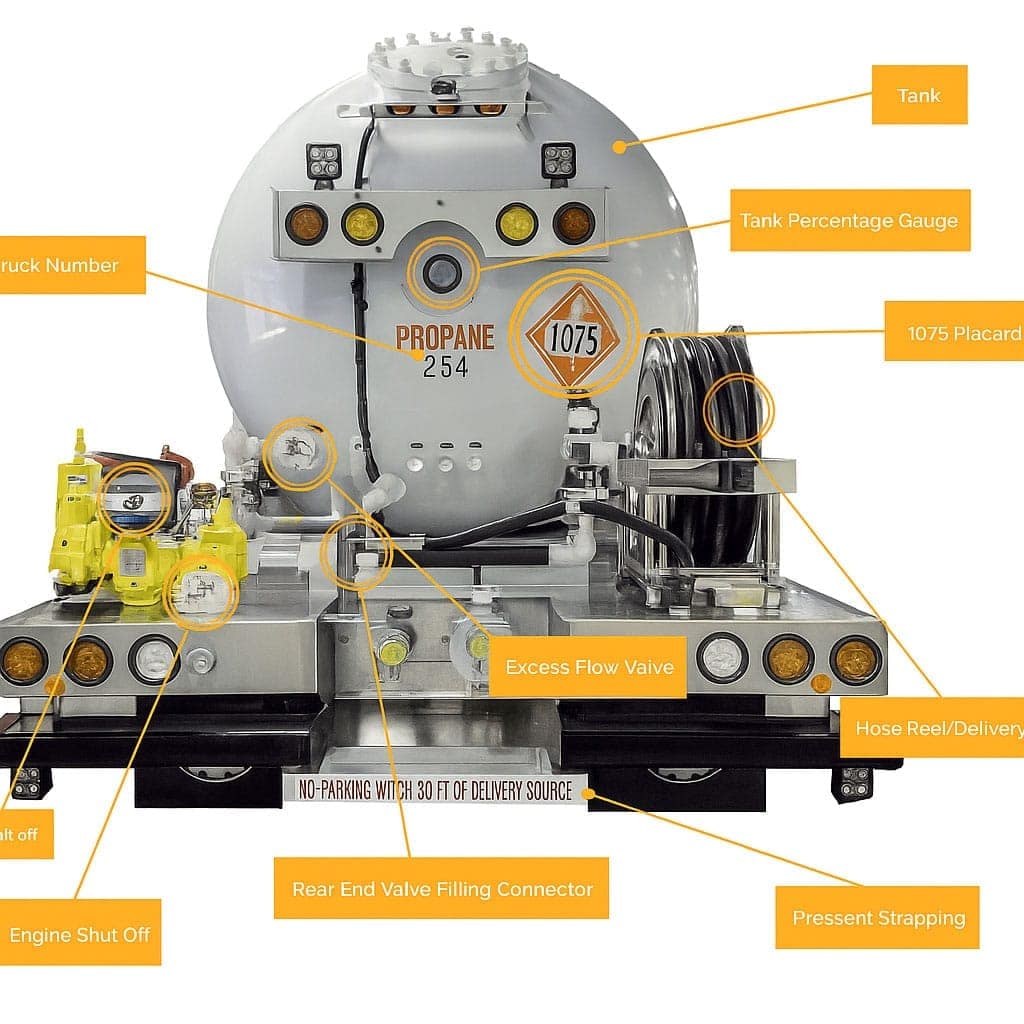

LPG BOBTAIL

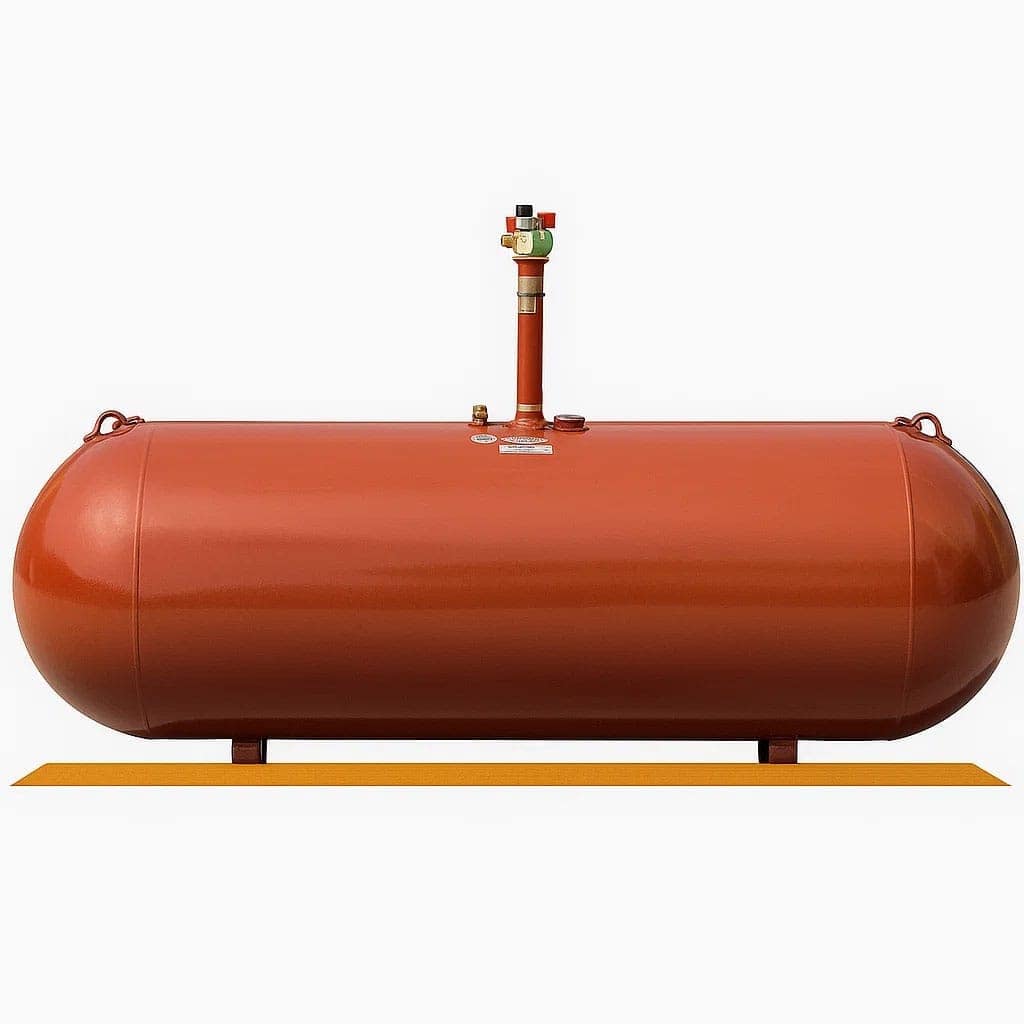

LPG UNDERGROUND TANK

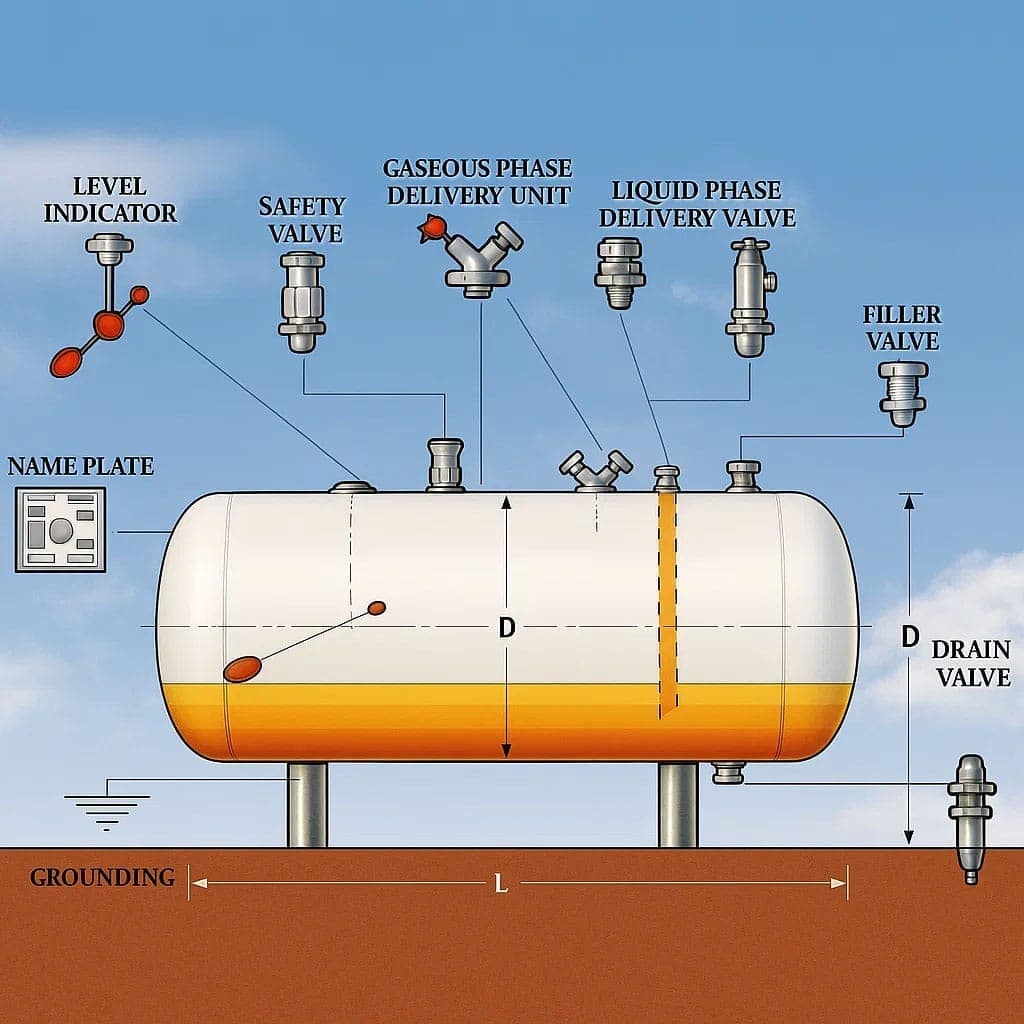

LPG INDUSTRIAL MINI TANK

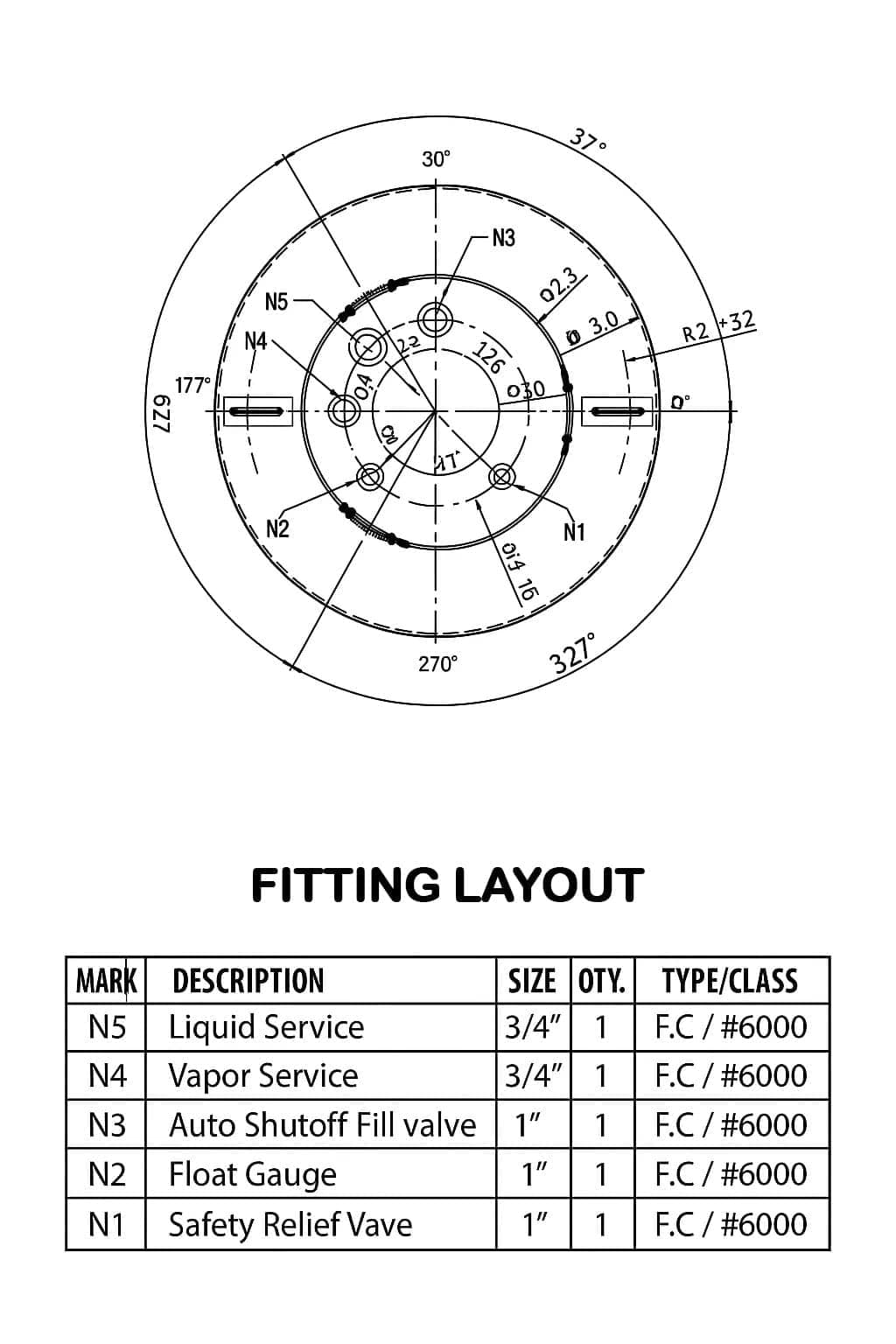

VERTICAL TANK

Tank Features

• Taller collar to accommodate preferred regulator set-ups
• Superior Coating
• D.O.T. 173.315(i) permits A.S.M.E. containers to be filled for transportation
• Heavy duty bottom foot ring
• Re-certification not required like D.O.T. cylinders

General Specifications

• Conforms to ASME Section VIII, Division 1
• Complies with NFPA 58
• Rated at 250 psig MAWP from -20°F to 125°F
• Evacuation to full vacuum (14.7 psi) possible
• Zinc epoxy primer + TGIC polyester topcoat finish

Need a Custom Tank?

We can build customized tanks based on your industrial or commercial needs. Let’s discuss your project today!
